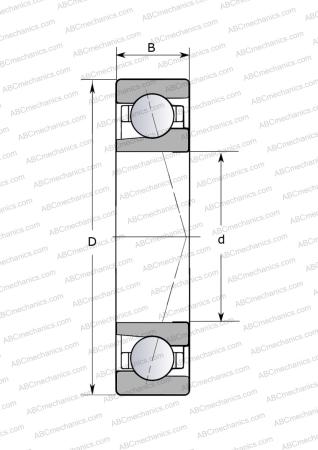

50TAC03D NSK Axial angular contact ball bearing

TYPE: Ball bearings, Axial angular contact ball bearing, Single direction, Contact angle 55°, Series TAC02/TAC03, ball screw support bearings, for high-load drive applications (NSK)

Metric Imperial Dimensions, mmin d 50,000 2,041 D 110,000 4,490 B 27,000 1,102 Weight, kg 1.14 Manufacturer: NSK Designation system - NSK

Calculation data

Attainable speed for grease lubrication	3700 r/min 3700 r/min
Attainable speed for oil-air lubrication	4700 r/min 4700 r/min
