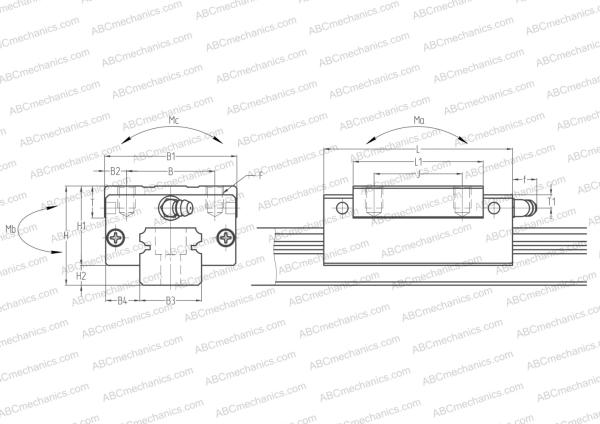

LAH30AN NSK Linear guides

TYPE: Monorail guidance systems, Recirculating balls, High vertical load carrying capacity type, Self-aligning type, Square type, High, Ball slide length - standard, Mounting tap, Interchangeable part

Metric Imperial Dimensions, mmin B1 60,000 2,449 H 45,000 1,837 L 85,600 3,494 B 40,000 1,633 J 40,000 1,633 L1 59,000 2,408 B2 10,000 0,408 B3 28,000 1,143 B4 16,000 0,653 H1 36,000 1,469 H2 9,000 0,367 T 14,000 0,571 T1 10,000 0,408 f 11,000 0,449 F M8x1.25x10 Slide weight, kg lb 0,770 0,349 Manufacturer: NSK Designation system - NSK

Technical specification

Basic dynamic load rating, C	25,700 kN 5777,617 lbf
Basic static load rating, Co	45,000 kN 10116,450 lbf
Static permissible moment, Ma	0,355 kN-m 261,835 lbf-ft
Static permissible moment, Mb	0,355 kN-m 261,835 lbf-ft
Static permissible moment, Mc	0,490 kN-m 361,405 lbf-ft
