SH20BN NSK Linear guides

TYPE: Monorail guidance systems, Recirculating balls, High vertical load carrying capacity type, Self-aligning type, Square type, High, Ball slide length - long, Mounting tap, Low noise, smooth operation type, Interchangeable part

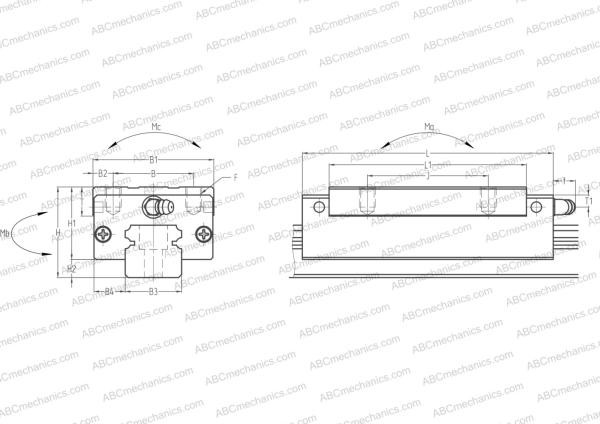

Metric Imperial Dimensions, mmin B1 44,000 1,796 H 30,000 1,224 L 91,800 3,747 B 32,000 1,306 J 50,000 2,041 L1 72,000 2,939 D2 10,000 0,408 B2 6,000 0,245 B3 20,000 0,816 B4 12,000 0,490 H1 25,000 1,020 H2 5,000 0,204 T 12,000 0,490 T1 5,000 0,204 f 11,000 0,449 C 60,000 2,449 d1 6,000 0,245 d2 9,500 0,388 h 18,000 0,735 h1 8,500 0,347 L max 3960,000 161,633 aL 20,000 0,816 aR 20,000 0,816 F M5x0.8x6 Slide weight, kg lb 0,480 0,218 Rail weight, kg lb 2,600 1,179 Manufacturer: NSK Designation system - NSK

Technical specification

Basic dynamic load rating, C	21,600 kN 4855,896 lbf
Basic static load rating, Co	44,500 kN 10004,045 lbf
Static permissible moment, Ma	0,360 kN-m 265,522 lbf-ft
Static permissible moment, Mb	0,305 kN-m 224,956 lbf-ft
Static permissible moment, Mc	0,298 kN-m 219,793 lbf-ft
