Linear motion systems
LH30HL ABC Linear guides

Metric

Imperial

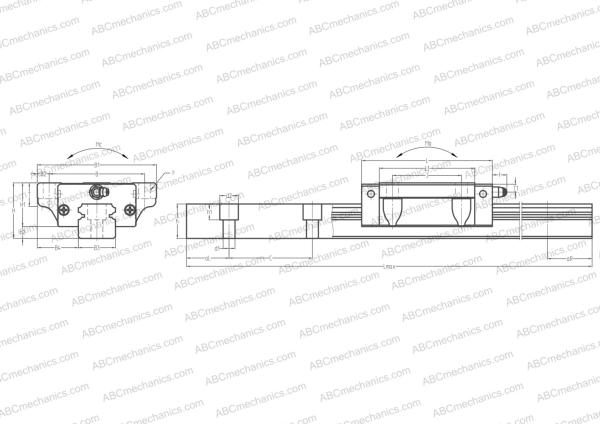

Dimensions, mmin

B1 90,000 3,673 H 42,000 1,714 L 124,600 5,086 B 72,000 2,939 J 52,000 2,122 L1 98,000 4,000 B2 9,000 0,367 B3 28,000 1,143 B4 31,000 1,265 H1 33,000 1,347 H2 9,000 0,367 T 11,000 0,449 T1 7,000 0,286 f 11,000 0,449 C 80,000 3,265 d1 9,000 0,367 d2 14,000 0,571 h 26,000 1,061 h1 12,000 0,490 L max 4000,000 163,265 aL 20,000 0,816 aR 20,000 0,816 F 9x12

Slide weight, kg lb	1,600 0,726
Rail weight, kg lb	5,200 2,359

Manufacturer:

ABC

Interchange:

NSK LH30HL THK HSR30LB IKO LWHG30 HIWIN HGW30HB STAR 1653-7
