Linear motion systems
LAS20EL NSK Linear guides

TYPE: Monorail guidance systems, Recirculating balls, High vertical load carrying capacity type, Self-aligning type, Flanged type, Low, Ball slide length - standard, Mounting tap, Compact, Interchangeable part

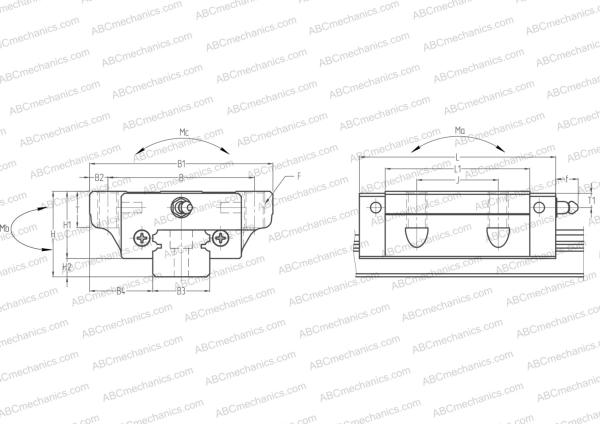

Metric Imperial Dimensions, mmin B1 59,000 2,408 H 28,000 1,143 L 65,200 2,661 B 49,000 2,000 J 32,000 1,306 L1 48,000 1,959 B2 5,000 0,204 B3 20,000 0,816 B4 19,500 0,796 H1 22,000 0,898 H2 6,000 0,245 T 10,000 0,408 T1 5,500 0,224 f 11,000 0,449 F M6x1x10 Slide weight, kg lb 0,240 0,109 Manufacturer: NSK Designation system - NSK

Technical specification

Basic dynamic load rating, C	8,900 kN 2000,809 lbf
Basic static load rating, Co	17,500 kN 3934,175 lbf
Static permissible moment, Ma	88,000 kN-m 64905,456 lbf-ft
Static permissible moment, Mb	88,000 kN-m 64905,456 lbf-ft
Static permissible moment, Mc	127,000 kN-m 93670,374 lbf-ft
