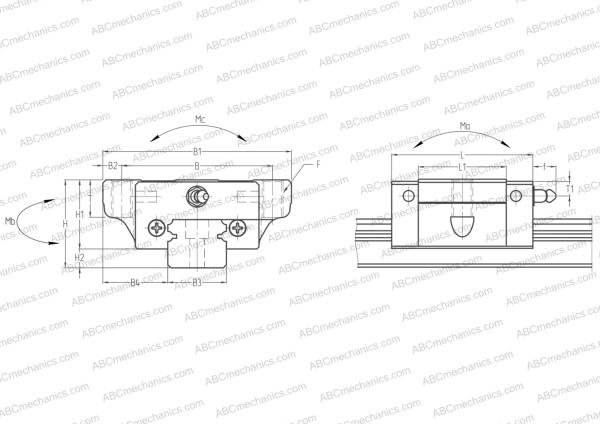

LAS15JL NSK Linear guides

TYPE: Monorail guidance systems, Recirculating balls, High vertical load carrying capacity type, Self-aligning type, Flanged type, Low, Ball slide length - short, Mounting tap, Compact, Interchangeable part

Metric Imperial Dimensions, mmin B1 52,000 2,122 H 24,000 0,980 L 40,400 1,649 B 41,000 1,673 L1 23,600 0,963 B2 5,500 0,224 B3 15,000 0,612 B4 18,500 0,755 H1 19,400 0,792 H2 4,600 0,188 T 8,000 0,327 T1 6,000 0,245 f 3,000 0,122 F M5x0.8x8 Slide weight, kg lb 0,170 0,077 Manufacturer: NSK Designation system - NSK

Technical specification

Basic dynamic load rating, C	4,550 kN 1022,886 lbf
Basic static load rating, Co	8,300 kN 1865,923 lbf
Static permissible moment, Ma	20,000 kN-m 14751,240 lbf-ft
Static permissible moment, Mb	20,000 kN-m 14751,240 lbf-ft
Static permissible moment, Mc	39,000 kN-m 28764,918 lbf-ft
