Linear motion systems
SH15HL NSK Linear guides

TYPE: Monorail guidance systems, Recirculating balls, High vertical load carrying capacity type, Self-aligning type, Flanged type, Low, Ball slide length - long, Mounting bolt hole, Low noise, smooth operation type

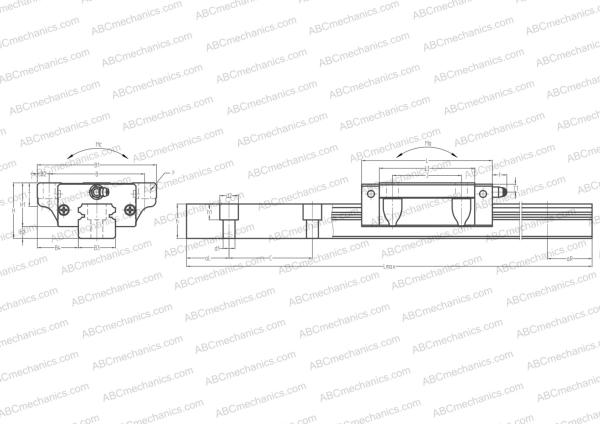

Metric Imperial Dimensions, mmin B1 47,000 1,918 H 24,000 0,980 L 74,000 3,020 B 38,000 1,551 J 30,000 1,224 L1 58,000 2,367 D2 7,500 0,306 B2 4,500 0,184 B3 15,000 0,612 B4 16,000 0,653 H1 19,400 0,792 H2 4,600 0,188 T 8,000 0,327 T1 4,500 0,184 f 3,300 0,135 C 60,000 2,449 d1 4,500 0,184 d2 7,500 0,306 h 15,000 0,612 h1 5,300 0,216 L max 2000,000 81,633 aL 20,000 0,816 aR 20,000 0,816 F 4.5x7 Slide weight, kg lb 0,250 0,113 Rail weight, kg lb 1,600 0,726 Manufacturer: NSK Designation system - NSK Interchange: ABC SH15HL THK SHS15LC

Technical specification

Basic dynamic load rating, C	10,900 kN 2450,429 lbf
Basic static load rating, Co	23,500 kN 5283,035 lbf
Static permissible moment, Ma	0,158 kN-m 116,535 lbf-ft
Static permissible moment, Mb	0,157 kN-m 115,797 lbf-ft
Static permissible moment, Mc	0,143 kN-m 105,471 lbf-ft

• Included products

• SAH15HL
