Linear motion systems

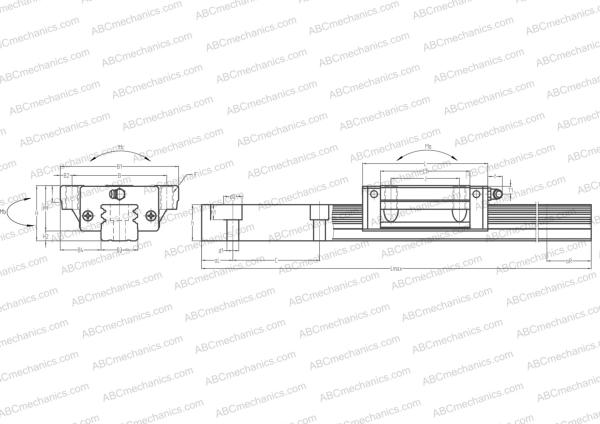

LY55GL ABC Linear guides

Metric

Imperial

Dimensions, mmin

B1 140,000 5,714 H 70,000 2,857 L 200,000 8,163 B 116,000 4,735 J 95,000 3,878 L1 160,000 6,531 B2 12,000 0,490 B3 53,000 2,163 B4 43,500 1,776 H1 57,000 2,327 H2 13,000 0,531 T 14,000 0,571 T1 11,000 0,449 f 13,000 0,531 C 120,000 4,898 d1 16,000 0,653 d2 23,000 0,939 h 45,000 1,837 h1 20,000 0,816 L max 3000,000 122,449 aL 30,000 1,224 aR 30,000 1,224 F M14x2x28

Slide weight, kg lb	6,100 2,767
Rail weight, kg lb	17,900 8,119

Manufacturer:

ABC

Interchange:

NSK LY55GL THK HSR55LA IKO LWHTG55 HIWIN LGW55HA STAR 1653-5
