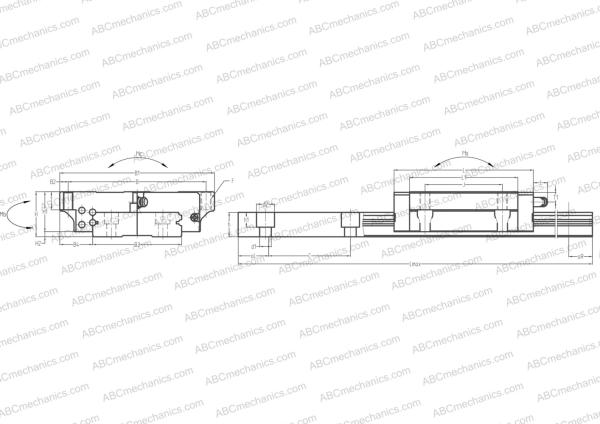

LE07TL NSK Linear guides

Metric

Imperial

Dimensions, mmin

B1 25,000 1,020 H 9,000 0,367 L 31,000 1,265 B 19,000 0,776 J 10,000 0,408 L1 21,200 0,865 D2 7,000 0,286 B2 3,000 0,122 B3 14,000 0,571 B4 5,500 0,224 H1 7,000 0,286 H2 2,000 0,082 C 30,000 1,224 d1 3,500 0,143 d2 6,000 0,245 h 5,200 0,212 h1 3,200 0,131 L max 600,000 24,490 aL 10,000 0,408 aR 10,000 0,408 F M3x0.5x3

Slide weight, kg lb	0,025 0,011
Rail weight, kg lb	0,055 0,025

Manufacturer:

NSK

Designation system - NSK

Interchange:

ABC LE07TL THK RSR7WZ IKO LWLF14..B HIWIN MGW7C
