Mounted bearings and housings
CUCF 207CE ASAHI Ball bearing units

TYPE: Housing units, Four-bolt flanged housing units, Cast iron housing, Radial insert ball bearing with grub screws in inner ring, Type CUCF..CE with cast iron covers, closed cover (ASAHI)

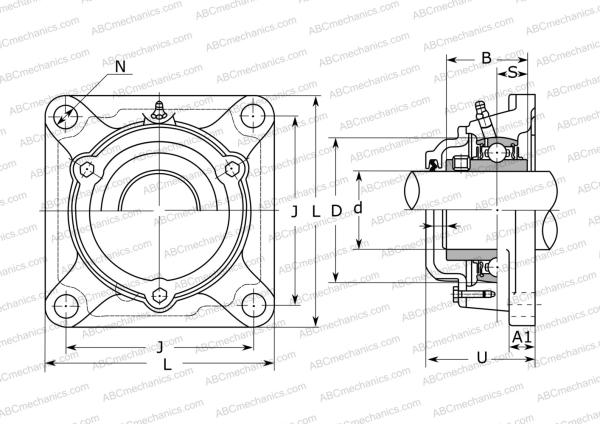

Metric Imperial Dimensions, mmin d 35,000 1,429 D 72,000 2,939 B 42,900 1,751 L 117,000 4,776 J 92,000 3,755 A1 16,000 0,653 N 14,000 0,571 S 17,500 0,714 U 59,000 2,408 Weight, kg 2,100 Bearing UC 207 Housing CF 207 Manufacturer: ASAHI Designation system - ASAHI Interchange: ASAHI CF 207 + UC 207
