Mounted bearings and housings
UCFC 205E ASAHI Ball bearing units

TYPE: Housing units, Four-bolt flanged housing units, Cast iron housing, Radial insert ball bearing with grub screws in inner ring, Type UCFC..E with pressed steel covers, closed cover (ASAHI)

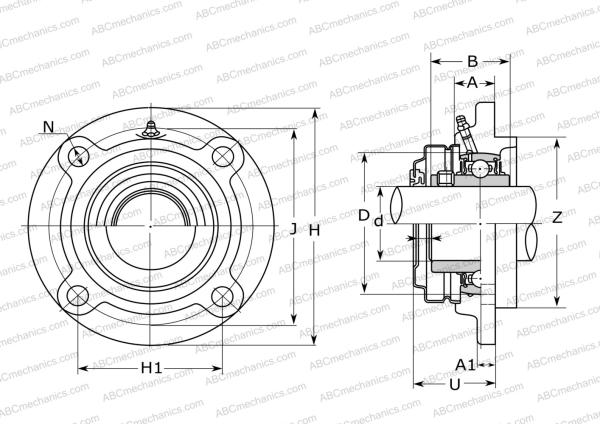

Metric Imperial Dimensions, mmin d 25,000 1,020 D 52,000 2,122 B 34,100 1,392 H 115,000 4,694 A 21,000 0,857 J 90,000 3,673 A1 7,000 0,286 H1 63,600 2,596 N 12,000 0,490 U 42,000 1,714 Z 70,000 2,857 Weight, kg lb 1,100 0,499 Bearing UC 205 Housing FC 205C Manufacturer: ASAHI Designation system - ASAHI Interchange: ASAHI FC 205C + UC 205
