Mounted bearings and housings
UKF X12 + H2312 ASAHI Ball bearing units

TYPE: Housing units, Four-bolt flanged housing units, Cast iron housing, Radial insert ball bearing with adapter sleeve, Type UKFX (ASAHI)

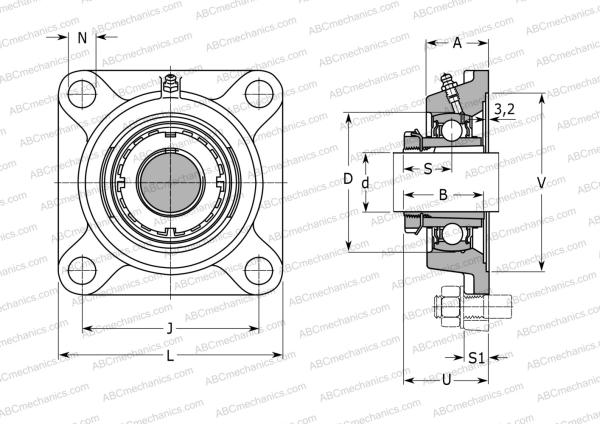

Metric Imperial Dimensions, mmin d 55,000 2,245 D 120,000 4,898 B 62,000 2,531 L 187,000 7,633 A 59,000 2,408 J 149,000 6,082 A1 21,000 0,857 A2 34,000 1,388 N 19,000 0,776 U 66,000 2,694 Weight, kg 5,300 Bearing UK X12 Housing F X12 Adapter sleeve H2312 Manufacturer: ASAHI Designation system - ASAHI Interchange: ASAHI F X12 + UK X12 + H2312
