Mounted bearings and housings
UCPG201 SNR Ball bearing units

TYPE: Housing units, Plummer block, Narrow cast iron housing, Radial insert ball bearing with grub screws in inner ring, With inner ring extended on both sides, wide base

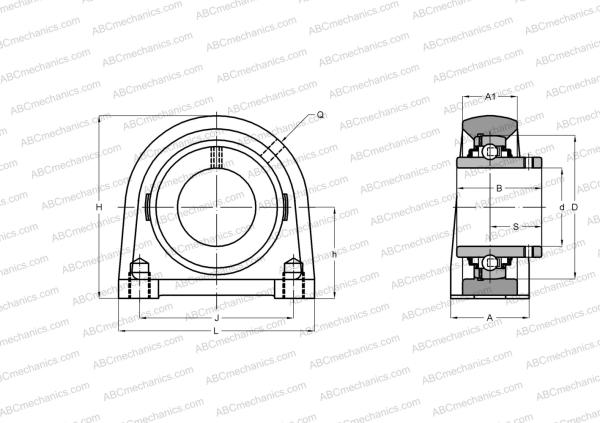

Metric Imperial Dimensions, mmin d 12,000 0,490 D 47,000 1,918 B 31,000 1,265 L 70,000 2,857 H 64,000 2,612 A 38,000 1,551 J 49,000 2,000 A1 20,000 0,816 H1 14,000 0,571 S 18,300 0,747 h 33,300 1,359 Q M6x1 Weight, kg 0,600 Bearing UC201 Housing PG204 Manufacturer: SNR Designation system - SNR Interchange: ABC UCPG201

Calculation data

Basic dynamic load rating, C	12,800 kN 2877,568 lbf
Basic static load rating, Co	6,650 kN 1494,987 lbf
Operating temperature min	-20 °C -4 °F
Operating temperature max	110 °C 230 °F
