Mounted bearings and housings
SUCPA206-20 ABC Ball bearing units

TYPE: Housing units, Plummer block, Narrow cast iron housing, Radial insert ball bearing with grub screws in inner ring, With inner ring extended on both sides, massive bearing units, stainless steel, inch size

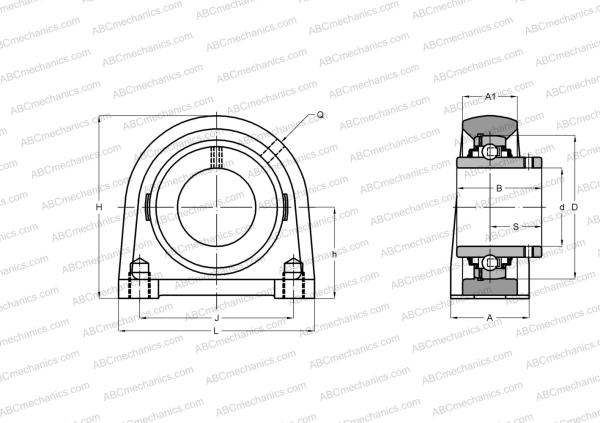

Metric Imperial Dimensions, mmin d 31,750 1,296 D 62,000 2,531 B 38,100 1,555 L 102,000 4,163 H 86,000 3,510 A 38,000 1,551 J 76,200 3,110 H1 12,000 0,490 S 22,200 0,906 h 42,900 1,751 Weight, kg 1,300 Bearing SUC206-20 Housing SPA206 Manufacturer: ABC Interchange: SNR SUCPA206-20
