Bearings

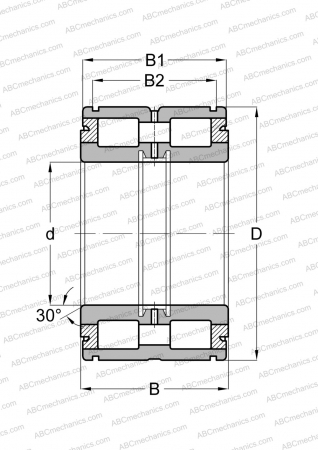

NAS 50 12 ZZNR IKO Cylindrical roller bearings

TYPE: Roller bearings, Cylindrical roller bearings, Double row, Full complement roller set, Locating bearing, central rib on outer ring, 3 ribs on inner ring, sealing shields

Metric Imperial Dimensions, mmin d 60,000 2,449 D 95,000 3,878 B 46,000 1,878 B1 45,000 1,837 B2 34,000 1,388 Weight, kg 1.2 Manufacturer: IKO Designation system - IKO

Calculation data

Basic dynamic load rating, C	123,000 kN 27651,630 lbf
Basic static load rating, Co	208,000 kN 46760,480 lbf
