Bearings
7305 BECBPH SKF Angular contact ball bearings

TYPE: Ball bearings, Angular contact ball bearing, Single row, Contact angle 40°, For universal use, moulded cage of polyether ether ketone (PEEK GF16), balls centered

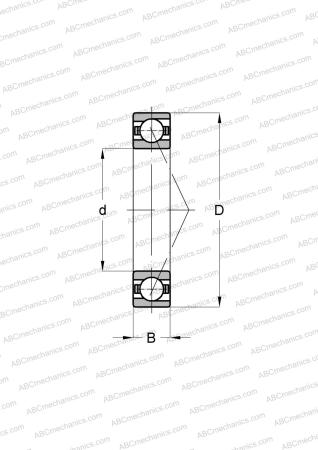

Metric Imperial Dimensions, mmin d 25,000 1,020 D 62,000 2,531 B 17,000 0,694 Weight, kg 0.23 Manufacturer: SKF Designation system - SKF

Calculation data

Basic dynamic load rating, C	26,500 kN 5957,465 lbf
Basic static load rating, Co	15,300 kN 3439,593 lbf
Fatigue load limit, Pu	0,655 kN 147,251 lbf
Reference speed	15000 r/min 15000 r/min
Limiting speed	15000 r/min 15000 r/min
