Bearings
7315 BEGAPH SKF Angular contact ball bearings

TYPE: Ball bearings, Angular contact ball bearing, Single row, Contact angle 40°, For universal use, moulded cage of polyether ether ketone (PEEK GF16), balls centered, extra light preload

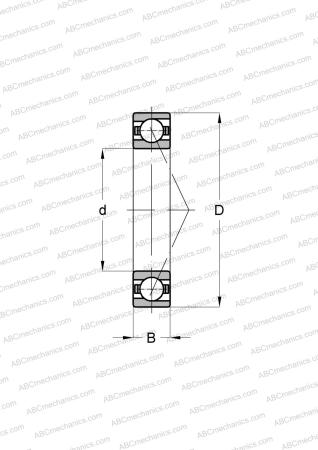

Metric Imperial Dimensions, mmin d 75,000 3,061 D 160,000 6,531 B 37,000 1,510 Weight, kg 3.2 Manufacturer: SKF Designation system - SKF

Calculation data

Basic dynamic load rating, C	132,000 kN 29674,920 lbf
Basic static load rating, Co	104,000 kN 23380,240 lbf
Fatigue load limit, Pu	4,150 kN 932,962 lbf
Reference speed	5300 r/min 5300 r/min
Limiting speed	5300 r/min 5300 r/min
