Bearings
E2.3304 A-2Z SKF Angular contact ball bearings

TYPE: Ball bearings, Angular contact ball bearing, Double row, Contact angle 30°, Gap seals on both side, energy Efficient bearing

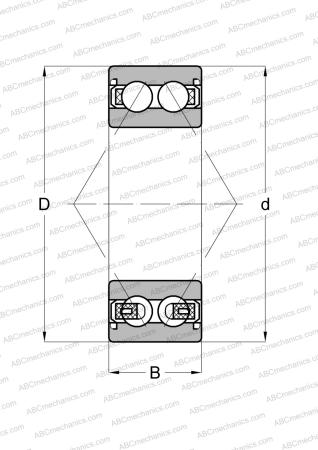

Metric Imperial Dimensions, mmin d 20,000 0,816 D 52,000 2,122 B 22,200 0,906 Weight, kg 0.22 Manufacturer: SKF Designation system - SKF

Calculation data

Basic dynamic load rating, C	23,600 kN 5305,516 lbf
Basic static load rating, Co	14,600 kN 3282,226 lbf
Fatigue load limit, Pu	0,620 kN 139,382 lbf
Limiting speed	13000 r/min 13000 r/min
