Sprockets
PHS 08B-2TB45 SKF Metric sprockets

TYPE: Double simplex, Taper bushed, hub on two side, Standard BS/ISO (SKF)

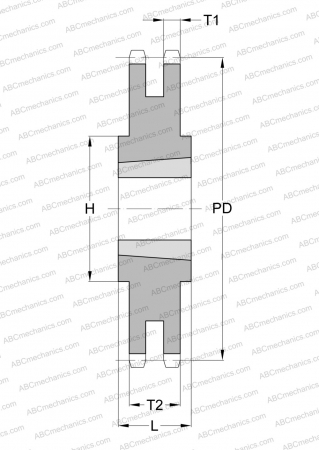

Metric Imperial Dimensions, mmin Pitch, p 12,700 0,518 Pitch diameter, PD 182,070 7,431 Dimensions bore, min 14,000 0,571 Dimensions bore, max 50,800 2,073 Hub, H 100,000 4,082 Thickness, T1 7,240 0,296 Thickness, T2 21,130 0,862 Number of teeth 45 Number of sleeve 2012 Weight, kg lb 3,730 1,692 Weight sleeve, kg lb 0,590 0,268 Manufacturer: SKF Designation system - SKF
